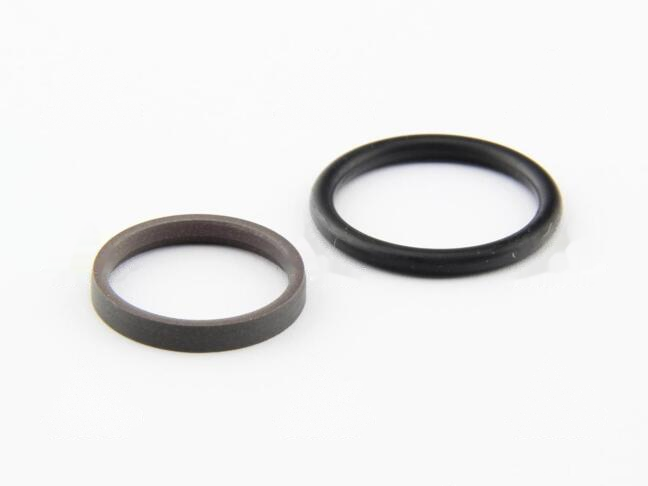

90091-0364 Rod seal, 18.00/25.3mm TURCON T46
€11,96
SKU's: 90091-0364
Condition: NEW
Availability: Available to order
90091-0364 Rod seal, 18.00/25.3mm TURCON T46
Product specifications
| Product code | 90091-0364 |
|---|---|
| Type of material | Mixed |
| Weight | 0.001 kg |
| Unit of measure | Piece |
| Chemical goods | No |
| Dangerous goods | No |
| Number of items per unit | 1 |
| Category | Rod seals |
| 3PE Supplier | GALDI |
| 3PE Supplier Product ID | 250R-170-63 |
| Designation | Rod seal |
| Material seal | TURCON T46 |
| Shaft diameter | 18.00 mm |
| Bore diameter | 25.3 mm |
| Width | 3.20 mm |
| Hardness | 70A |
| Max speed (m/s) | 15.0 m/s |
| Temperature min | -30 °C |
| Temperature range, min - max | -30 - 100 °C |
| Temperature max | 100 °C |
| Pressure max | 50 MPa |
| Single-/double-acting | Single |
| Material O-ring | NBR |
